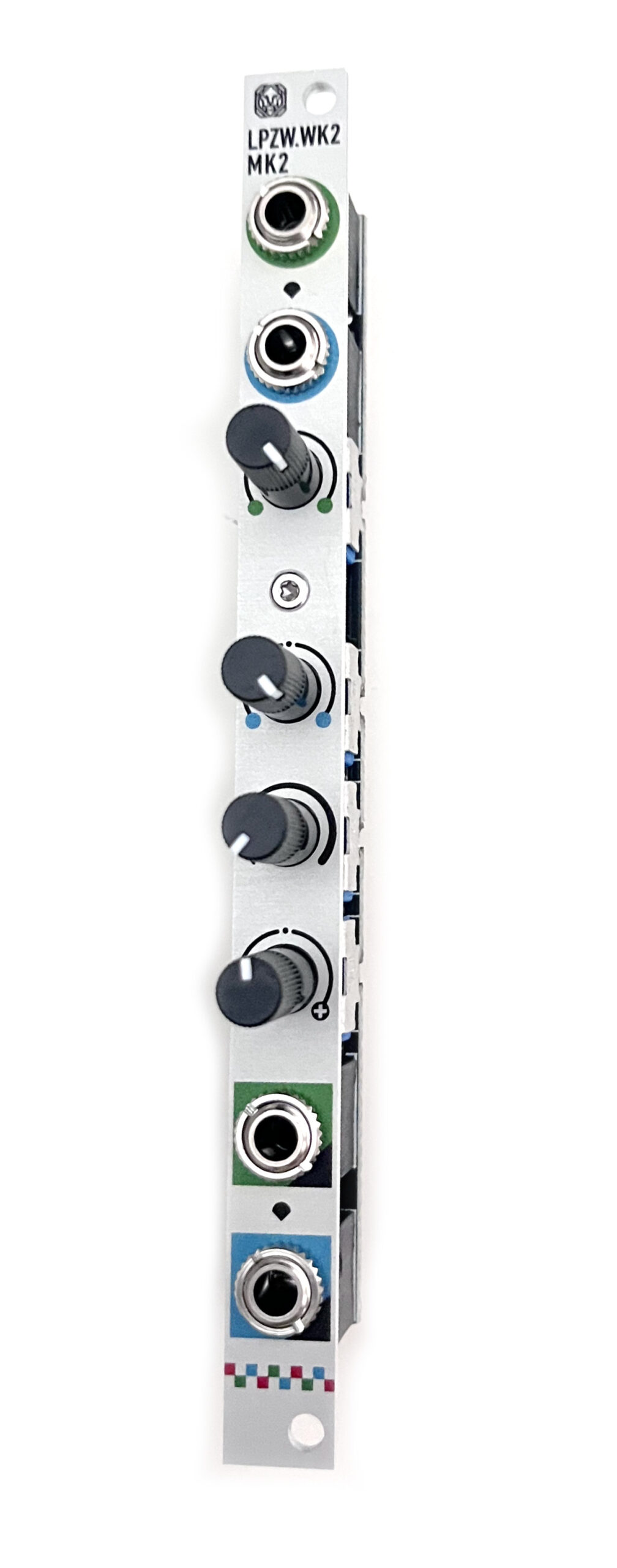

2HP Modulation CV conditioner (Attenuverter, Offset, Slew Limiter)
2023 Update:
We will change the layout of this module. So it is currently not in production. We can not say when it will be back again.

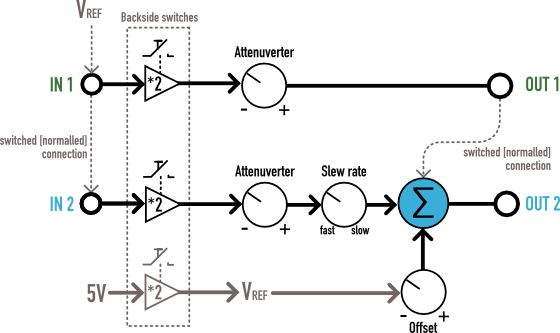

2 channel attenuverter
1st channel input is normaled to selected internal reference DC
2nd channel also has
– offset (+/- 5V or +/- 11V via jumper)
– slew rate limiter
– first channel input is normaled to 2nd channel
– first channel output is normaled to be added to second channel output
20 mA +12V20 mA -12V
0 mA 5V
25 mm deep
